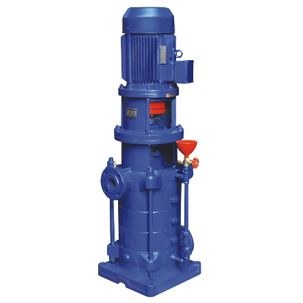

DL、DLR立式多級離心泵（低轉速n=1450r/min）是本公司根據高層建筑給水市場的實際需要和消防局GB 6245-1998《消防泵性能要求和試驗方法》標準而研制開發的新型產品。供輸送不含堅硬顆粒及物理化學改選類似于水的介質之用。流量范圍為5～400m3/h，揚程范圍為22～300m，配套功率范圍為1.5～250KW,口徑范圍為φ40～φ200mm。同一臺泵的出口可設1～5個出口。
產品推薦
| DL立式多級離心泵性能參數表 | |||||||
| 型號 | 級數 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | |
| (m3/h) | (L/s) | (m) | (%) | (r/min) | (kw) | ||
| 40DL6-12 | 2 | 4.9 | 1.36 | 24.8 | 37 | 1450 | 1.5 |
| 6.2 | 1.72 | 23.6 | 40 | ||||
| 40DLR6-12 | 7.4 | 2.06 | 21.6 | 39 | |||
| 3 | 4.9 | 1.36 | 37.2 | 37 | 2.2 | ||
| 6.2 | 1.72 | 35.4 | 40 | ||||
| 7.4 | 2.06 | 32.4 | 39 | ||||
| 4 | 4.9 | 1.36 | 49.6 | 37 | 3 | ||
| 6.2 | 1.72 | 47.2 | 40 | ||||
| 7.4 | 2.06 | 43.2 | 39 | ||||
| 5 | 4.9 | 1.36 | 62 | 37 | 4 | ||
| 6.2 | 1.72 | 59 | 40 | ||||
| 7.4 | 2.06 | 54 | 39 | ||||
| 6 | 4.9 | 1.36 | 74.4 | 37 | 4 | ||
| 6.2 | 1.72 | 70.8 | 40 | ||||
| 7.4 | 2.06 | 64.8 | 39 | ||||
| 7 | 4.9 | 1.36 | 86.8 | 37 | 5.5 | ||
| 6.2 | 1.72 | 82.6 | 40 | ||||
| 7.4 | 2.06 | 75.2 | 39 | ||||
| 8 | 4.9 | 1.36 | 99.2 | 37 | 5.5 | ||
| 6.2 | 1.72 | 94.4 | 40 | ||||
| 7.4 | 2.06 | 86.4 | 39 | ||||
| 9 | 4.9 | 1.36 | 111.6 | 37 | 7.5 | ||
| 6.2 | 1.72 | 106.2 | 40 | ||||
| 7.4 | 2.06 | 97.6 | 39 | ||||
| 10 | 4.9 | 1.36 | 124 | 37 | 7.5 | ||
| 6.2 | 1.72 | 118 | 40 | ||||
| 7.4 | 2.06 | 108.8 | 39 | ||||
| 11 | 4.9 | 1.36 | 136.4 | 37 | 7.5 | ||
| 6.2 | 1.72 | 129.8 | 40 | ||||
| 7.4 | 2.06 | 120 | 39 | ||||
| 50DL12-12.5 | 2 | 9 | 2.5 | 27 | 47 | 1450 | 3 |
| 50DLR12-12.5 | 12.6 | 3.5 | 25 | 55 | |||
| 18 | 5 | 22 | 58 | ||||
| 3 | 9 | 2.5 | 40.5 | 47 | 3 | ||
| 12.6 | 3.5 | 37.5 | 55 | ||||
| 18 | 5 | 33 | 58 | ||||
| 4 | 9 | 2.5 | 54 | 47 | 4 | ||
| 12.6 | 3.5 | 50 | 55 | ||||
| 18 | 5 | 44 | 58 | ||||
| 5 | 9 | 2.5 | 67.5 | 47 | 5.5 | ||
| 12.6 | 3.5 | 62.5 | 55 | ||||
| 18 | 5 | 55 | 58 | ||||
| 6 | 9 | 2.5 | 81 | 47 | 5.5 | ||
| 12.6 | 3.5 | 75 | 55 | ||||
| 18 | 5 | 66 | 58 | ||||
| 7 | 9 | 2.5 | 94.5 | 47 | 7.5 | ||
| 12.6 | 3.5 | 87.5 | 55 | ||||
| 18 | 5 | 77 | 58 | ||||
| 8 | 9 | 2.5 | 108 | 47 | 7.5 | ||
| 12.6 | 3.5 | 100 | 55 | ||||
| 18 | 5 | 88 | 58 | ||||
| 9 | 9 | 2.5 | 121.5 | 47 | 11 | ||
| 12.6 | 3.5 | 112.5 | 55 | ||||
| 18 | 5 | 99 | 58 | ||||
| 10 | 9 | 2.5 | 135 | 47 | 11 | ||
| 12.6 | 3.5 | 125 | 55 | ||||
| 18 | 5 | 110 | 58 | ||||
| 65DL30-16 | 2 | 18 | 5 | 37 | 56 | 1450 | 5.5 |
| 65DLR30-16 | 30 | 8.33 | 32 | 62 | |||
| 35 | 9.72 | 29 | 60 | ||||
| 3 | 18 | 5 | 55.5 | 56 | 7.5 | ||
| 30 | 8.33 | 48 | 62 | ||||
| 35 | 9.72 | 43.5 | 60 | ||||
| 4 | 18 | 5 | 74 | 56 | 11 | ||
